热性能突出、能量平衡最佳的高端回流焊系统

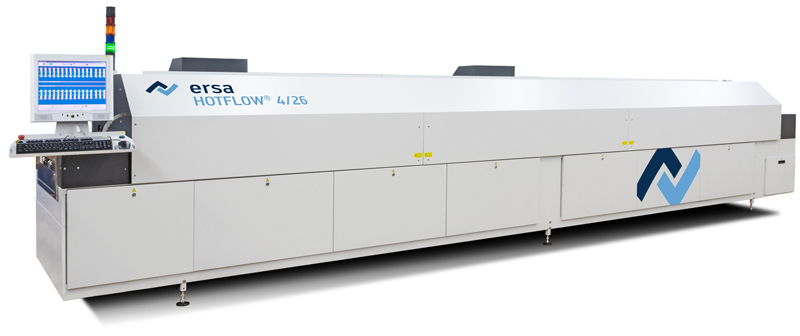

埃莎Ersa HOTFLOW 4/26 热风氮气回流焊 Reflow 产能最高、能量平衡最优、过程控制最佳,且机器开机率最高。

此新型 HOTFLOW 以久经考验的多点喷嘴 Ersa 专有加热技术为依托,属第三代机器。早在该 HOTFLOW 系列机器的研发阶段,设计人员便重点考虑了通过完全重新设计工艺隧道来提高传热效率、减少能量与 N2 消耗、改进冷却效果以及优化工艺控制。

无论从生产效率还是占地面积来看,HOTFLOW 都当之无愧为行业的标杆。凭借其双轨、三轨和如今的四轨选项,可在不增加占地面积的情况下将产能提高 4 倍!此外,针对每个轨道都可设定不同的速度与 PCB 宽度,从而实现最高的生产灵活性。

目前,这款机器可设定四种不同的速度和轨宽度同时处理三种不同的产品。为保证机器的可用性最高,我们只使用最优质的材料。最后,所有主要部件的更换都可在几分钟内完成,将机器的停机时间降至最低。






内部图.jpg独特的技术优势:

德国原装马达,大大降低荡机时间

五个变频器,防止小器件吹偏

多点喷嘴专利带来卓越的热补偿,防止冷焊

节电最高达50%以上

氮气闭环控制,节省氮气

德国原装导轨,防止变形和卡板掉件

麦饭石吸附系统,防止滴油

吹风盘抽拉式,无需工具拆卸



  • Reflow soldering system with outstanding thermal performance and an excellent power balance

  • Individually controllable process zones via energy-optimized motors

  • Multi-level controlled cooling

  • Multi-level process gas cleaning with pyrolysis

  • Rest-oxygen monitoring and control, low N2 consumption

  • Ersa Process Control software (EPC)

  • Software to generate temperature profiles

  • Multi-track conveyor systems (1-4), 1x fixed, 3x variable

  • Thermally invisible center supports

  • Low energy consumption in continuous operation

  • Patented grip conveyor system for flex boards

  • Auto Profiler to off-line and quickly generate temperature profiles


. HOTFLOW 4/26

The Ersa HOTFLOW 4/26 Reflow Soldering System is of robust design and manufactured entirely from steel, welded air-tight, powder coated and with interior electric cabinet and a PC operating terminal. Features include the motorized hood opening, quick-change convection heater cassettes, multi-level process gas cleaning and a powerful, high-performance cooling zone.


  • Pin-and-chain conveyor with either 3 / 4 / 5 mm pin length

  • Pin-and-chain conveyor with low-mass center support

  • Motorized adjustment of conveyor width and center support

  • Up to 4 tracks with center support in the system (1x fixed, 3x variable)

  • Patented grip conveyor system for flex boards

  • With single track systems, the use of low mass tubular supports is possible

  • Operation with either ambient air or nitrogen

  • The cooling zone of the system can be equipped with an integrated cooling system and an external cooling aggregate

  • Cooling can be either with cooling aggregate or with local water connection

  • Multi-level condensation management system available with pyrolysis

  • Heating and cooling cassettes removable without tools

  • Energy-consumption management



参数.jpg软件的亮点:

Ersa 标准版MES 追溯系统

Ersasoft – 中英文用户介面

Auto profiler 温度曲线模拟仿真软件

待机和休眠模式

作业管理















资料下载


     Ersa 4/26

品牌
埃莎Ersa
型号
Ersa HOTFLOW 3/20
净重
2800 KG
机器尺寸
7705*1410*1350
保修期
12个月
Cylce Time
20-200 cm/min
PCB尺寸
45-560 mm
功率
3.3 kW
电压
220V/380V
双轨选项
单轨/双轨
加热温区数
10温区
氮气选项
空气/氮气
加热区长度
3570
冷区方式
风冷/水冷
连接MES
可连接
